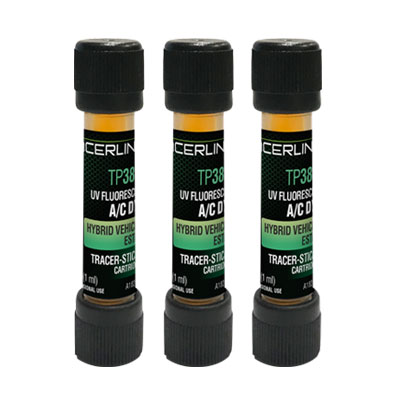

Tracer-Stick® Hybrid A/C Dye Replacement Capsules
- Box of three 0.03 oz (1mL) Tracer-Stick® capsules filled with co-solvent free fluorescent ester dye with unique additives blended specifically for hybrid A/C systems.
- Highly concentrated and glows bright.

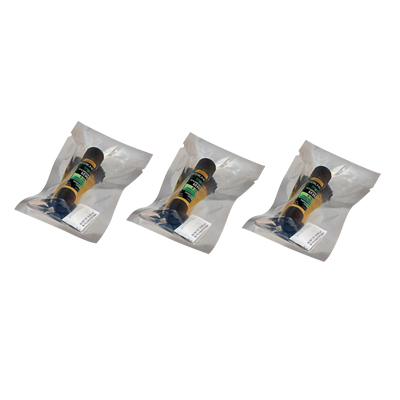

- Individually wrapped in a moisture-resistant foil pouch with a desiccant bag.
Tracer-Stick Capsules 2-Step Selection Guide
- Read across and choose the column with the amount of refrigerant/lubricant in the system being leak-checked. Use multiple Tracer-Stick capsules for larger systems.
Amount of Refrigerant Up to 2.9 lb
3 to 4.9 lb
(1.4 to 2.2 kg)
5 to 9.9 lb
(2.3 to 4.5 kg)
10 to 25 lb
(4.6 to 11.3 kg)
Amount of Lubricant Up to 15 fl. oz
1 pt to 1.6 qt
(0.5 to 1.5 L)
1.7 to 3.2 qt
(1.6 to 3.0 L)
3.3 qt to 2 gal
(3.1 to 7.6 L)
Typical Vehicle Type Passenger Cars Vans and
Large Trucks and
Full-Size Buses and
- Then read down that column and choose the Tracer-Stick capsule part number below that is across from the lubricant type in the system. (If lubricant type is not known, Tracer-Stick universal/POE capsules are compatible with all lubricants.)
Lubricant Type Small Capsules Mineral Oil TP-3850 PAG TP-3860 Universal/POE TP-3870 Hybrid POE TP-3811 — — —
— for All Hybrid A/C Systems
|TP-3811-0301||3 – 0.03 oz (1 ml) capsules|
