Tracer Wafer is built-in at the factory. As the vehicle runs, the dye circulates with the oil. In the service bay, a tech scans the system with a UV leak detection lamp and the bright Tracer Wafer glow highlights leak points immediately. The result: quicker diagnosis, fewer retests, and consistent results across vehicles.
Installed in hundreds of millions of vehicles worldwide, Tracer Wafer is the only fluorescent wafer trusted by OEMs to deliver reliable leak detection from the factory to the service bay.
How It Works:
Tracer Wafer: Wafer approved in A/C system requirements.
Desiccant bags: Wafer embedded directly into desiccant bags by Tier 2 suppliers. No added steps.
Vehicle A/C System: Wafer dissolves safely. Dye circulates with the oil without clogging or affecting refrigerant flow.
Service Bay: Leaks fluoresce instantly under UV light for fast, accurate service.
*Note: Dye lasts for system lifetime, unless oil replaced.
Size and Applicaiton

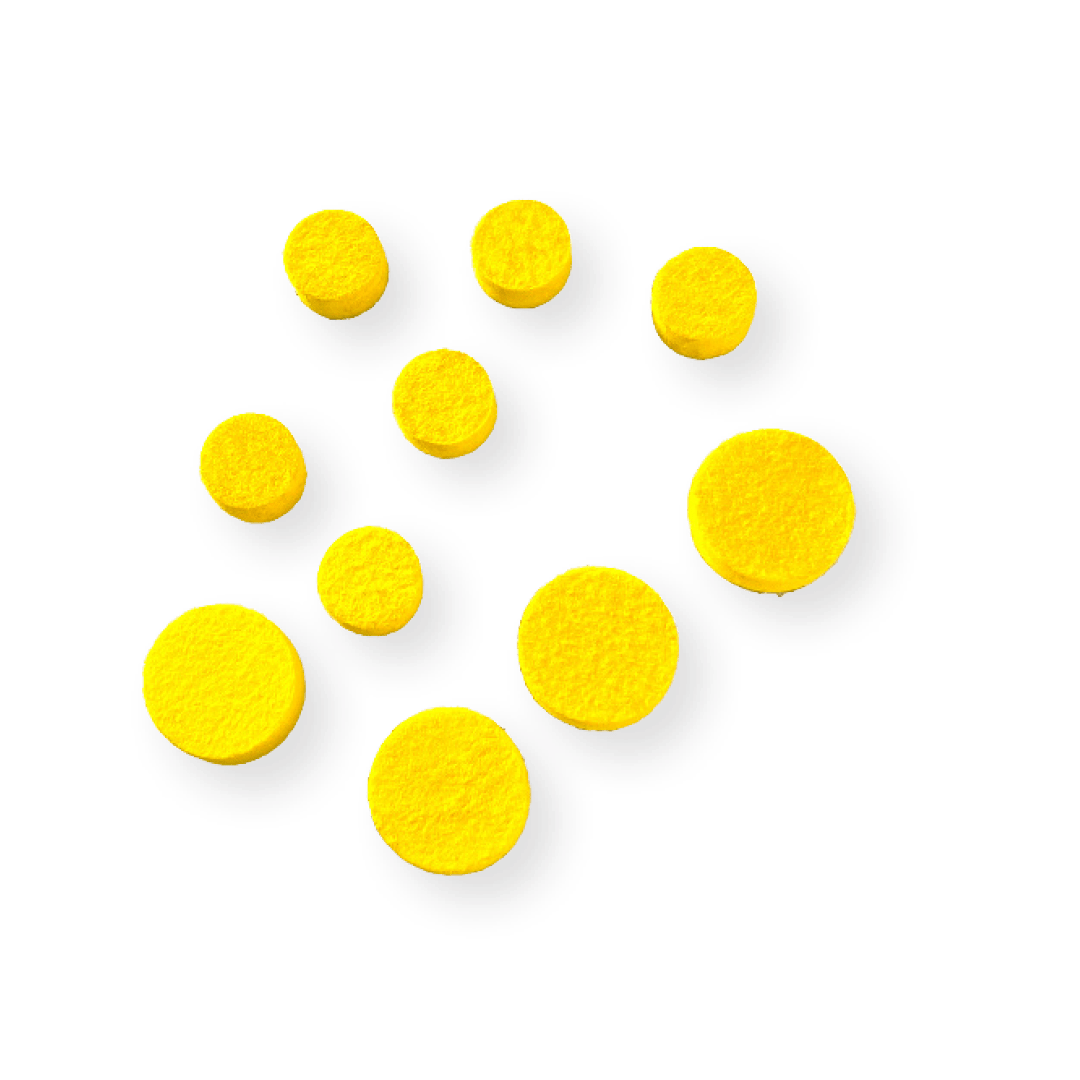

Available in multiple sizes to match system oil capacity and application
Part #
Oil Capacity
Wafer Diameter
Application
Example Vehicles/
Equipment
TW-107829
3.5 oz
(103 ml)
0.250 in (6.35 mm)
Toyota Corolla, Honda Civic, Hyundai Elantra
TW-108451
5.0 oz
(148 ml)
0.250 in (6.35 mm)
Ford Fiesta, Nissan Versa, Chevrolet Spark
TW-123344
5.0 oz
(148 ml)
0.281 in
(7.14 mm)
Kia Forte, VW Polo, Mazda 3
TW-127240
5.0 oz
(148 ml)
0.375 in (9.53 mm)
Hyundai Accent, Toyota Yaris,
Honda Fit
TW-120022
6.7 oz
(198 ml)
0.281 in (7.14 mm)
Toyota Camry, Honda Accord, Nissan Altima
TW-108450
8.5 oz
(251 ml)
0.375 in (9.53 mm)
Ford Escape, Hyundai Tucson,
VW Tiguan
TW-107990
11.0 oz
(325 ml)
0.500 in
(12.7 mm)
Ford F-250 / F-350 Super Duty, RAM 2500
TW-124963
14.0 oz
(414 ml)
0.375 in
(9.53 mm)
Freightliner Cascadia, Volvo VNL, Kenworth T680
TW-118210
14.0 oz
(414 ml)
0.500 in
(12.7 mm)
John Deere Construction Equipment, Komatsu Wheel Loaders
